(TY-CNBG51100) 48V100AH 5KWH Powerwall Lithium Battery For Household Energy Storage

Solar Battery Dismension:

W 407mm* D 193mm* H 538mm

Normal Voltage (V)

48V

Nominal Capacity

100Ah

Discharge and Voltage (V)

25.6v

Max Discharge Current (A)

Lifepo4 Battery Max discharge Current 120A

Nominal Capacity (KWH)

Home Use Energy Storage Capacity 5kwh 10Kwh 15KWh 20Kwh 25kwh 30kwh

Weight (Kgs)

LiFePO4 LIthium Battery Weight 33.9kg

Cycle Life (DOD 80%)

Li-Ion Battery Cycle Life >6000

Enquiry

Series：

Environmental protection

Keyword: (TY-CNBG51100) 48V100AH 5KWH Powerwall Lithium Battery For Household Energy Storage

Features

Technical data

Applications

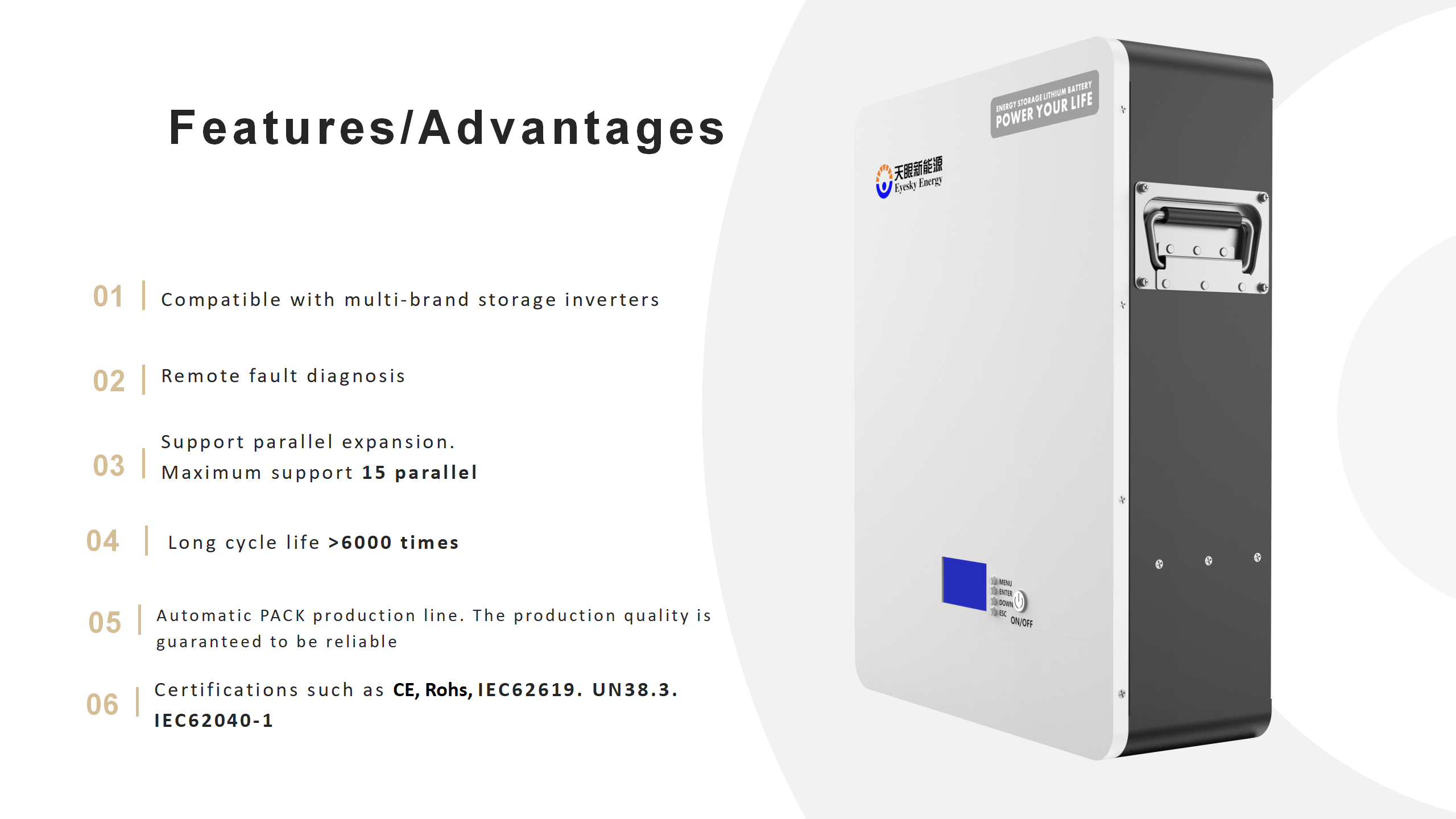

Features

(TY-CNBG25120) 3KWH Wall-mounted Lithium-ion Battery For Home Energy Storage

Wall-mounted energy storage solutions, often utilizing Lithium-ion or LiFePO4 batteries, offer a compelling proposition for households seeking energy independence and cost savings. These systems, such as Tesla's Powerwall, are designed to store excess solar energy generated during the day, providing backup power during outages and reducing reliance on the grid. The compact design of these wall-mounted units allows for easy installation in homes with limited space, while the long lifespan and high efficiency of Lithium-ion and LiFePO4 batteries ensure reliable performance over many years.

By storing excess solar energy generated during peak production periods, these systems enable homeowners to utilize this stored energy during times when electricity rates are highest, a process known as time-of-use rate arbitrage. Moreover, these systems can serve as backup power during grid outages, mitigating the financial losses associated with business interruptions. Products like Tesla's Powerwall exemplify the growing popularity of residential battery storage solutions.

High-efficient Wall-mounted Energy Battery Storage System

Each cabinet is 5kwh, it can be parrallelled flexibly.The max parrallel qty can reach 15 cabinets, reach 75kwh.

Technical data

Parameters for Stacked Home Solar Energy Lithium Batteries

	CNBG25120	CNBG51100	CNLB51200
Battery type	LiFePO₄ battery(8S1P）	LiFePO₄ battery(16S1P）	LiFePO₄ battery(16S2P）
Voltage	25.6 V	51.2 V	51.2 V
Capacity	120Ah	100Ah	200Ah
Energy	3 KWH	5.12 KWH	10.24 KWH
Max.charging and discharging current	120A	120A	200A
Max Continuous Discharge Current	120A	120A	200A
Peak Current	130A	130A	210A
Battery Life time	10 years	10 years	10 years
Life cycles(80% DOD, 25°C)	≥6000	≥6000	≥6000
Storage time / temperature	5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C	5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C	5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C
Operation temperature	-20°C to 60°C @60% Relative Humidity	-20°C to 60°C @60% Relative Humidity	-20°C to 60°C @60% Relative Humidity
Storage temperature	0°C to 35°C @60% Relative Humidity	0°C to 35°C @60% Relative Humidity	0°C to 35°C @60% Relative Humidity
Enclosure protection rating	IP21	IP21	IP21
Reports	UN38.3, MSDS	UN38.3, MSDS	UN38.3, MSDS
Support Max 15 groups of parallel expansion, universal inverter protocol	RS485/RS232/CAN communication.	RS485/RS232/CAN communication.	RS485/RS232/CAN communication.
Product size(L×W×H)	407193538 mm	407193600 mm	6021731060 mm
N.W.	33.9kg	50.55kg	115.5 kg
UN wooden case	615490273 mm	675490273 mm	1135700265 mm
G.W.	44.5 kg	59.5 kg	132 kg

Packing list

Applications

Our wall-mounted energy storage products, such as the Powerwall, employ advanced lithium-ion battery technology, with lithium iron phosphate (LiFePO4) batteries being particularly popular due to their high safety and long lifespan. These products not only provide households with a stable power supply but also seamlessly integrate with smart home systems, offering users a more intelligent and convenient electricity experience. As the global demand for clean energy continues to grow, our products have vast market potential worldwide.

Sustainability is at the core of our company values. We are committed to giving back to society through our involvement in a range of community initiatives.

Profit Donations

Eyesky donates 1% of all profits to Save The Children, anorganization that works to provide children in underservedand/or dangerous locations with a healthy start in life, the opportunity to learn, and protection from harm. Save The Children is a global leader in championing the rights of our youth. To learn more about Save The Children and their many initiatives, visit their website here.

Child Sponsorships

Every month, Eyesky sponsors 10 local children in China, providing them with essential goods and protecting them from hunger. Eyesky believes that a better future for all starts with a better present for children everywhere, and that you don’t have to look far to find children whose lives you can make a difference in.

产品描述
Features
Technical data
Applications

- Commodity name: (TY-CNBG51100) 48V100AH 5KWH Powerwall Lithium Battery For Household Energy Storage
Wall-mounted energy storage solutions, often utilizing Lithium-ion or LiFePO4 batteries, offer a compelling proposition for households seeking energy independence and cost savings.

Solar Battery Dismension:

W 407mm* D 193mm* H 538mm

Normal Voltage (V)

48V

Nominal Capacity

100Ah

Discharge and Voltage (V)

25.6v

Max Discharge Current (A)

Lifepo4 Battery Max discharge Current 120A

Nominal Capacity (KWH)

Home Use Energy Storage Capacity 5kwh 10Kwh 15KWh 20Kwh 25kwh 30kwh

Weight (Kgs)

LiFePO4 LIthium Battery Weight 33.9kg

Cycle Life (DOD 80%)

Li-Ion Battery Cycle Life >6000
(TY-CNBG25120) 3KWH Wall-mounted Lithium-ion Battery For Home Energy Storage

Wall-mounted energy storage solutions, often utilizing Lithium-ion or LiFePO4 batteries, offer a compelling proposition for households seeking energy independence and cost savings. These systems, such as Tesla's Powerwall, are designed to store excess solar energy generated during the day, providing backup power during outages and reducing reliance on the grid. The compact design of these wall-mounted units allows for easy installation in homes with limited space, while the long lifespan and high efficiency of Lithium-ion and LiFePO4 batteries ensure reliable performance over many years.

By storing excess solar energy generated during peak production periods, these systems enable homeowners to utilize this stored energy during times when electricity rates are highest, a process known as time-of-use rate arbitrage. Moreover, these systems can serve as backup power during grid outages, mitigating the financial losses associated with business interruptions. Products like Tesla's Powerwall exemplify the growing popularity of residential battery storage solutions.

High-efficient Wall-mounted Energy Battery Storage System

Each cabinet is 5kwh, it can be parrallelled flexibly.The max parrallel qty can reach 15 cabinets, reach 75kwh.

Parameters for Stacked Home Solar Energy Lithium Batteries

	CNBG25120	CNBG51100	CNLB51200
Battery type	LiFePO₄ battery(8S1P）	LiFePO₄ battery(16S1P）	LiFePO₄ battery(16S2P）
Voltage	25.6 V	51.2 V	51.2 V
Capacity	120Ah	100Ah	200Ah
Energy	3 KWH	5.12 KWH	10.24 KWH
Max.charging and discharging current	120A	120A	200A
Max Continuous Discharge Current	120A	120A	200A
Peak Current	130A	130A	210A
Battery Life time	10 years	10 years	10 years
Life cycles(80% DOD, 25°C)	≥6000	≥6000	≥6000
Storage time / temperature	5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C	5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C	5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C
Operation temperature	-20°C to 60°C @60% Relative Humidity	-20°C to 60°C @60% Relative Humidity	-20°C to 60°C @60% Relative Humidity
Storage temperature	0°C to 35°C @60% Relative Humidity	0°C to 35°C @60% Relative Humidity	0°C to 35°C @60% Relative Humidity
Enclosure protection rating	IP21	IP21	IP21
Reports	UN38.3, MSDS	UN38.3, MSDS	UN38.3, MSDS
Support Max 15 groups of parallel expansion, universal inverter protocol	RS485/RS232/CAN communication.	RS485/RS232/CAN communication.	RS485/RS232/CAN communication.
Product size(L×W×H)	407193538 mm	407193600 mm	6021731060 mm
N.W.	33.9kg	50.55kg	115.5 kg
UN wooden case	615490273 mm	675490273 mm	1135700265 mm
G.W.	44.5 kg	59.5 kg	132 kg

Our wall-mounted energy storage products, such as the Powerwall, employ advanced lithium-ion battery technology, with lithium iron phosphate (LiFePO4) batteries being particularly popular due to their high safety and long lifespan. These products not only provide households with a stable power supply but also seamlessly integrate with smart home systems, offering users a more intelligent and convenient electricity experience. As the global demand for clean energy continues to grow, our products have vast market potential worldwide.

Sustainability is at the core of our company values. We are committed to giving back to society through our involvement in a range of community initiatives.

Profit Donations

Eyesky donates 1% of all profits to Save The Children, anorganization that works to provide children in underservedand/or dangerous locations with a healthy start in life, the opportunity to learn, and protection from harm. Save The Children is a global leader in championing the rights of our youth. To learn more about Save The Children and their many initiatives, visit their website here.

Child Sponsorships

Every month, Eyesky sponsors 10 local children in China, providing them with essential goods and protecting them from hunger. Eyesky believes that a better future for all starts with a better present for children everywhere, and that you don’t have to look far to find children whose lives you can make a difference in.
