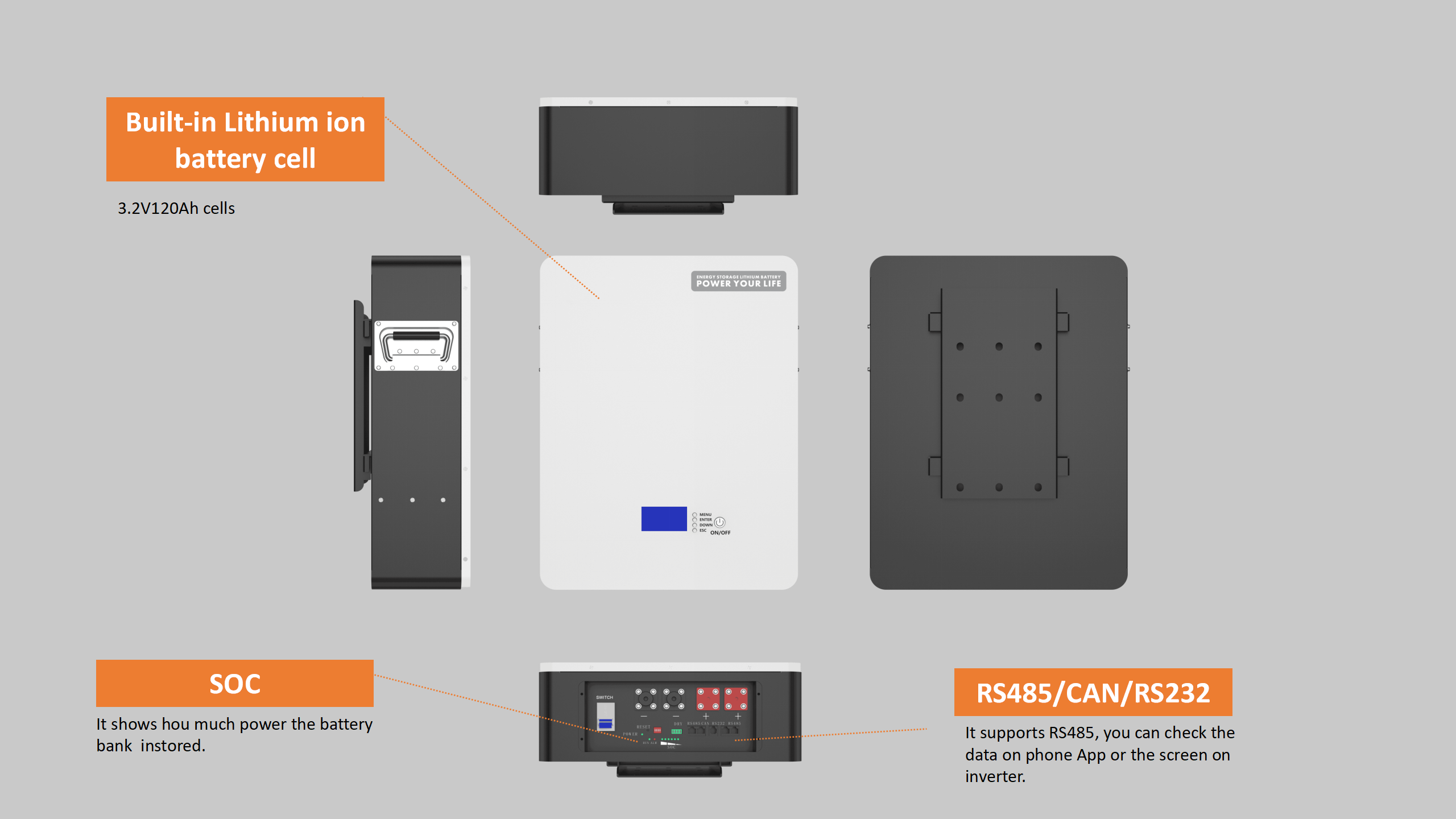

(TY-CNBG25120) 3KWH Wall-mounted Solar Battery For Home Energy Storage
Solar Lithium Battery Dismension:
W 407mm* D 193mm* H 538mm
Normal Voltage (V)
25.6V
Nominal Capacity
120Ah
Discharge and Voltage (V)
25.6v
Max Discharge Current (A)
Lithium Battery Max discharge Current 120A
Nominal Capacity (KWH)
Home use Solar Battery Capacity 5kwh 10Kwh 15KWh 20Kwh 25kwh 30kwh
Weight (Kgs)
LiFePO4 LIthium Battery Weight 33.9kg
Cycle Life (DOD 80%)
Li-Ion Battery Cycle Life >6000
Series：
Environmental protection
Keyword: (TY-CNBG25120) 3KWH Wall-mounted Solar Battery For Home Energy Storage
Features
(TY-CNBG25120) 3KWH Wall-mounted Solar Battery For Home Energy Storage
Home energy storage is becoming increasingly popular as homeowners seek to reduce their reliance on the grid, lower energy costs, and increase their energy independence. By combining solar energy systems with battery storage, homeowners can generate their own electricity, store excess energy for later use, and even provide backup power during outages.
The future of home energy is bright with the continued development of home Solar Battery storage systems. As battery technology improves and costs decrease, more homeowners will have the opportunity to embrace clean, renewable energy. By investing in home energy storage, homeowners can not only reduce their carbon footprint but also increase the value of their homes and create a more sustainable future.
High-efficient Wall-mounted Solar Energy Battery Storage System
Each cabinet is 3kwh, it can be parrallelled flexibly.The max parrallel qty can reach 15 cabinets, reach 45kwh.
Technical data
Parameters for Home Solar Energy Storage Batteries
| CNBG25120 | CNBG51100 | CNLB51200 | |
| Battery type | LiFePO₄ battery(8S1P） | LiFePO₄ battery(16S1P） | LiFePO₄ battery(16S2P） |
| Voltage | 25.6 V | 51.2 V | 51.2 V |
| Capacity | 120Ah | 100Ah | 200Ah |
| Energy | 3 KWH | 5.12 KWH | 10.24 KWH |
| Max.charging and discharging current | 120A | 120A | 200A |
| Max Continuous Discharge Current | 120A | 120A | 200A |
| Peak Current | 130A | 130A | 210A |
| Battery Life time | 10 years | 10 years | 10 years |
| Life cycles(80% DOD, 25°C) | ≥6000 | ≥6000 | ≥6000 |
| Storage time / temperature | 5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C | 5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C | 5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C |
| Operation temperature | -20°C to 60°C @60% Relative Humidity | -20°C to 60°C @60% Relative Humidity | -20°C to 60°C @60% Relative Humidity |
| Storage temperature | 0°C to 35°C @60% Relative Humidity | 0°C to 35°C @60% Relative Humidity | 0°C to 35°C @60% Relative Humidity |
| Enclosure protection rating | IP21 | IP21 | IP21 |
| Reports | UN38.3, MSDS | UN38.3, MSDS | UN38.3, MSDS |
| Support Max 15 groups of parallel expansion, universal inverter protocol | RS485/RS232/CAN communication. | RS485/RS232/CAN communication. | RS485/RS232/CAN communication. |
| Product size(L×W×H) | 407*193*538 mm | 407*193*600 mm | 602*173*1060 mm |
| N.W. | 33.9kg | 50.55kg | 115.5 kg |
| UN wooden case | 615*490*273 mm | 675*490*273 mm | 1135*700*265 mm |
| G.W. | 44.5 kg | 59.5 kg | 132 kg |
Packing list
Applications
Our home energy storage systems have been installed in homes worldwide, empowering our customers to achieve energy independence and sustainability. By providing reliable backup power and integrating seamlessly with solar energy systems, our solutions have not only met our customers' immediate needs but have also enabled them to expand their market share in their local communities.
Sustainability is at the core of our company values. We are committed to giving back to society through our involvement in a range of community initiatives.
Profit Donations
Eyesky donates 1% of all profits to Save The Children, anorganization that works to provide children in underservedand/or dangerous locations with a healthy start in life, the opportunity to learn, and protection from harm. Save The Children is a global leader in championing the rights of our youth. To learn more about Save The Children and their many initiatives, visit their website here.
Child Sponsorships
Every month, Eyesky sponsors 10 local children in China, providing them with essential goods and protecting them from hunger. Eyesky believes that a better future for all starts with a better present for children everywhere, and that you don’t have to look far to find children whose lives you can make a difference in.
- 产品描述
- Features
- Technical data
- Applications
-
- Commodity name: (TY-CNBG25120) 3KWH Wall-mounted Solar Battery For Home Energy Storage
Home energy storage is becoming increasingly popular as homeowners seek to reduce their reliance on the grid, lower energy costs, and increase their energy independence.
Solar Lithium Battery Dismension:
W 407mm* D 193mm* H 538mm
Normal Voltage (V)
25.6V
Nominal Capacity
120Ah
Discharge and Voltage (V)
25.6v
Max Discharge Current (A)
Lithium Battery Max discharge Current 120A
Nominal Capacity (KWH)
Home use Solar Battery Capacity 5kwh 10Kwh 15KWh 20Kwh 25kwh 30kwh
Weight (Kgs)
LiFePO4 LIthium Battery Weight 33.9kg
Cycle Life (DOD 80%)
Li-Ion Battery Cycle Life >6000
-
(TY-CNBG25120) 3KWH Wall-mounted Solar Battery For Home Energy Storage
Home energy storage is becoming increasingly popular as homeowners seek to reduce their reliance on the grid, lower energy costs, and increase their energy independence. By combining solar energy systems with battery storage, homeowners can generate their own electricity, store excess energy for later use, and even provide backup power during outages.
The future of home energy is bright with the continued development of home Solar Battery storage systems. As battery technology improves and costs decrease, more homeowners will have the opportunity to embrace clean, renewable energy. By investing in home energy storage, homeowners can not only reduce their carbon footprint but also increase the value of their homes and create a more sustainable future.
High-efficient Wall-mounted Solar Energy Battery Storage System
Each cabinet is 3kwh, it can be parrallelled flexibly.The max parrallel qty can reach 15 cabinets, reach 45kwh.
-
Parameters for Home Solar Energy Storage Batteries
CNBG25120 CNBG51100 CNLB51200 Battery type LiFePO₄ battery(8S1P） LiFePO₄ battery(16S1P） LiFePO₄ battery(16S2P） Voltage 25.6 V 51.2 V 51.2 V Capacity 120Ah 100Ah 200Ah Energy 3 KWH 5.12 KWH 10.24 KWH Max.charging and discharging current 120A 120A 200A Max Continuous Discharge Current 120A 120A 200A Peak Current 130A 130A 210A Battery Life time 10 years 10 years 10 years Life cycles(80% DOD, 25°C) ≥6000 ≥6000 ≥6000 Storage time / temperature 5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C 5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C 5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C Operation temperature -20°C to 60°C @60% Relative Humidity -20°C to 60°C @60% Relative Humidity -20°C to 60°C @60% Relative Humidity Storage temperature 0°C to 35°C @60% Relative Humidity 0°C to 35°C @60% Relative Humidity 0°C to 35°C @60% Relative Humidity Enclosure protection rating IP21 IP21 IP21 Reports UN38.3, MSDS UN38.3, MSDS UN38.3, MSDS Support Max 15 groups of parallel expansion, universal inverter protocol RS485/RS232/CAN communication. RS485/RS232/CAN communication. RS485/RS232/CAN communication. Product size(L×W×H) 407*193*538 mm 407*193*600 mm 602*173*1060 mm N.W. 33.9kg 50.55kg 115.5 kg UN wooden case 615*490*273 mm 675*490*273 mm 1135*700*265 mm G.W. 44.5 kg 59.5 kg 132 kg -
Our home energy storage systems have been installed in homes worldwide, empowering our customers to achieve energy independence and sustainability. By providing reliable backup power and integrating seamlessly with solar energy systems, our solutions have not only met our customers' immediate needs but have also enabled them to expand their market share in their local communities.
Sustainability is at the core of our company values. We are committed to giving back to society through our involvement in a range of community initiatives.
Profit Donations
Eyesky donates 1% of all profits to Save The Children, anorganization that works to provide children in underservedand/or dangerous locations with a healthy start in life, the opportunity to learn, and protection from harm. Save The Children is a global leader in championing the rights of our youth. To learn more about Save The Children and their many initiatives, visit their website here.
Child Sponsorships
Every month, Eyesky sponsors 10 local children in China, providing them with essential goods and protecting them from hunger. Eyesky believes that a better future for all starts with a better present for children everywhere, and that you don’t have to look far to find children whose lives you can make a difference in.
