TY-TF200100(H)Large Capacity Solar Powered System Wireless Outdoor Security Camera
200W Monocrystalline Solar Powered System Kit with Built-in Rechargeable Lithium Battery 12V 100Ah(1280WH), Waterproof IP67 for Off-Grid System.

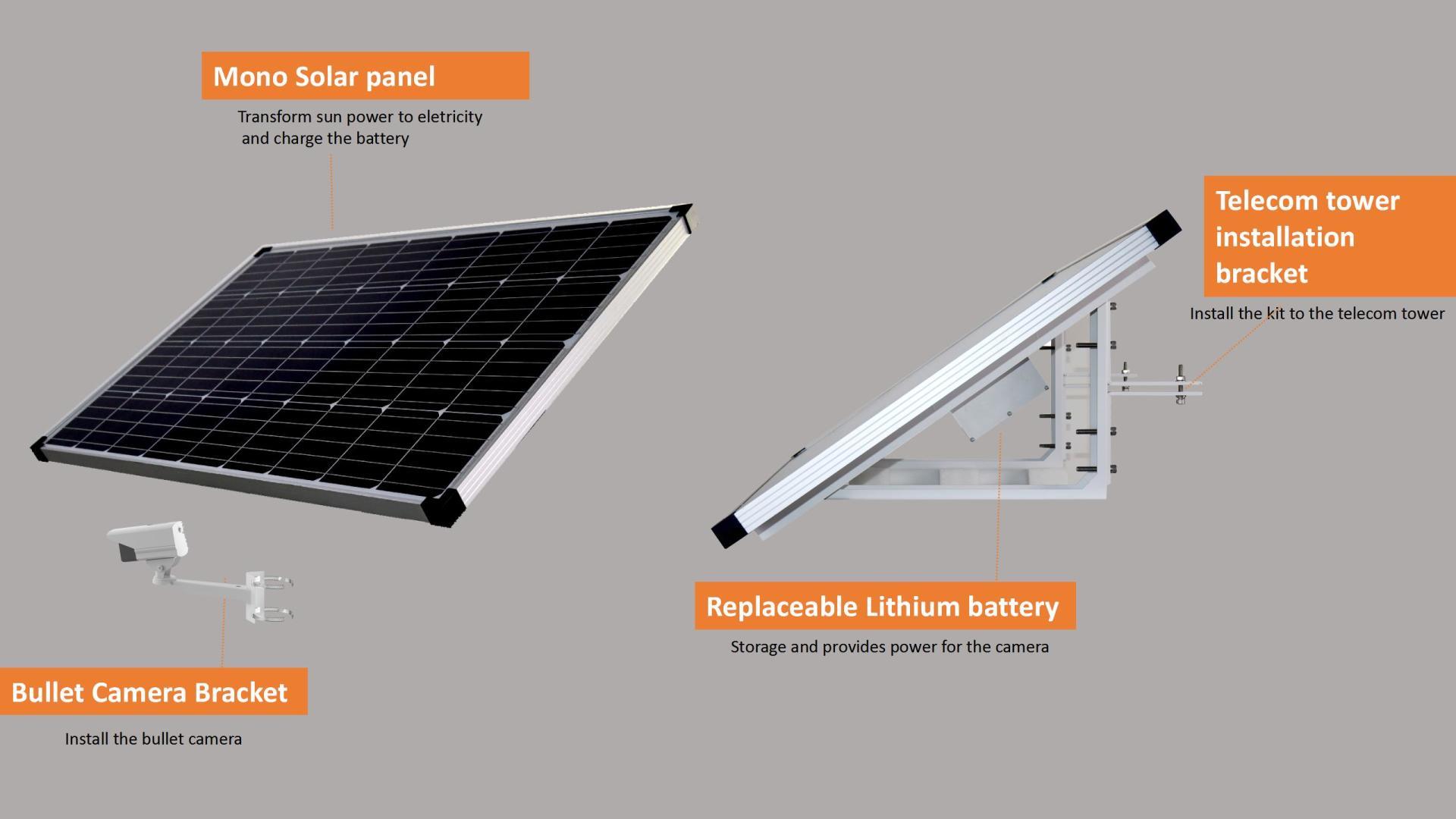

● Long Cycle Life Monocrystalline Solar Panel
This 200 watts Monocrystalline Solar Panel provides higher energy conversion efficiency, and the excellent surface texturing technology guarantees good weak light performance. The harsh environment adaptability helps to extend the service life.
● High Capacity Built-in Lithium Battery
12V 100Ah Rechargeable Lithium Battery ensure reliable performance and continuous power output. Rated capacity reached 1280Wh.
● Built-in Charge MPPT Controller Provides Comprehensive Protection
Support battery high-low temperature protection, charge-discharge protection and low-battery sleep protection, which provide guarantee for the stability of power supply.
● RS485 supported
Our system support for RS485, It needs to set before leaving factory

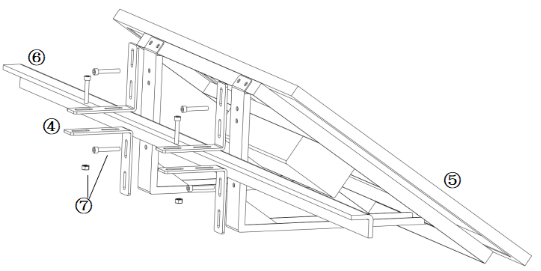

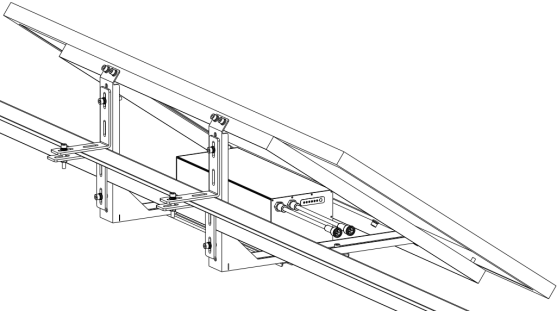

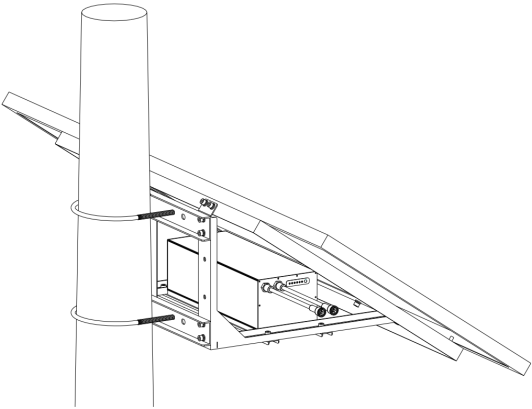

● Easy Installation and Wide Application
The completely equipped accessory kit is suitable for a variety of installation scenes. Designed for areas where other power supplies cannot reach, such as camping, RVs, trailers, hunting, warehouse, farms, ranch and other remote power use.
● 2-Years Warranty & Lifetime Technical Support
2-years warranty and lifetime technical support.
Series：
Environmental protection
Keyword: TY-TF200100(H)Large Capacity Solar Powered System Wireless Outdoor Security Camera
Features
TY-TF200100(H)Large Capacity Solar Powered System Wireless Outdoor Security Camera
Using Environment
Technical data
General data
|
Solar Power Supply |
|||||
|
Monitoring battery |
Load voltage |
Maximum load power |
Load conversion efficiency |
Maximum charging current |
Sun input voltage |
|
100AH |
10~ 14.6V |
80 W |
90%~97% |
10 A |
18 V |

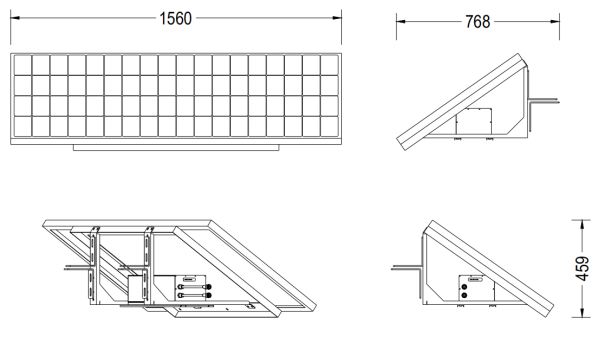

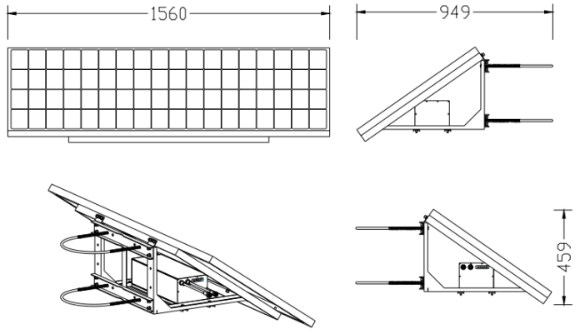

Technical drawing
|
Solar Panel / Battery summary |
TY-TF200100(H) |
|
Size Battery |
345×120×140mm |
|
Module |
200W |
|
Battery |
Lithium Ion-1280WH |
|
Load Voltage |
10~14.6V |
|
Max Charge |
8A |
|
Solar Input Voltage |
18V |
|
Max Load |
40W |
|
Solar Panel |
|
|
Solar Cell |
166Mono |
|
Optimum Power(V) |
18V |
|
Optimum operating Current |
11.1A |
|
Short Circuit Voltage |
3.66 |
|
Open Circuit Voltage |
21.24V |
|
Size Module |
1560*670*30mm |
|
Front Glass Thickness |
3.2mm |
|
Tolerance Watts |
±3% |
|
Surfacer Max Load Capacity |
60m/s(5kg/sq.m) |
|
Allowable Hail Load |
23m/s,7.53g |
|
Temperature range |
-20℃ to +85℃ |
|
Weight Per Piece(KG) |
40KG with Battery (no Pole or accessories) |
|
Cell Efficiency |
21.6% |
|
Warranty |
90% for 10 years,80% for 25 years* |
|
Water proof |
IP67 |
|
Battery |
|
|
Array Mode |
4S1P |
|
Nominal Capacity |
100000mAh |
|
Minimum Capacity |
>949000mAh |
|
Nominal Voltage |
12.8V |
|
Opertating Temp |
Charging:0℃ 〜 65℃(32°F to 140°F) |
|
Cycle Life |
＜2000* |
(For detailed data sheet, please contact with us )

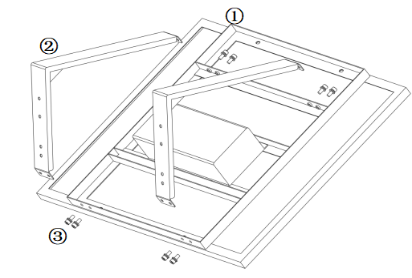

Packing list
|
Item |
Quantity |
|
Solar kit (without camera) |
1 Set |
|
90 degree fixed iron plate |
4 Pieces |
|
90 degree support frame |
2 Pieces |
|
M8*16mm socket head cap screws |
8 Pieces |
|
M8*50mm hexagonal screws and nuts, spring pads, flat pads |
6 Sets |
|
Hexagon socket screwdriver (M8) |
1 Piece |
|
Certificate of Conformity |
1 Piece |
|
Compass |
1 Piece |
|
Instruction manual |
1 Piece |
|

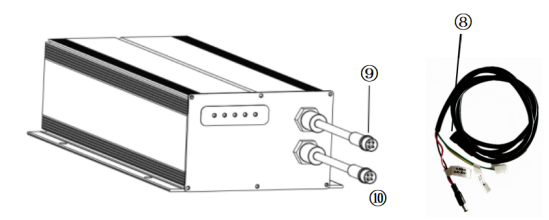

4-core DC+485 0.75 square 1.5 meters (4-core small head) |
1 Piece |

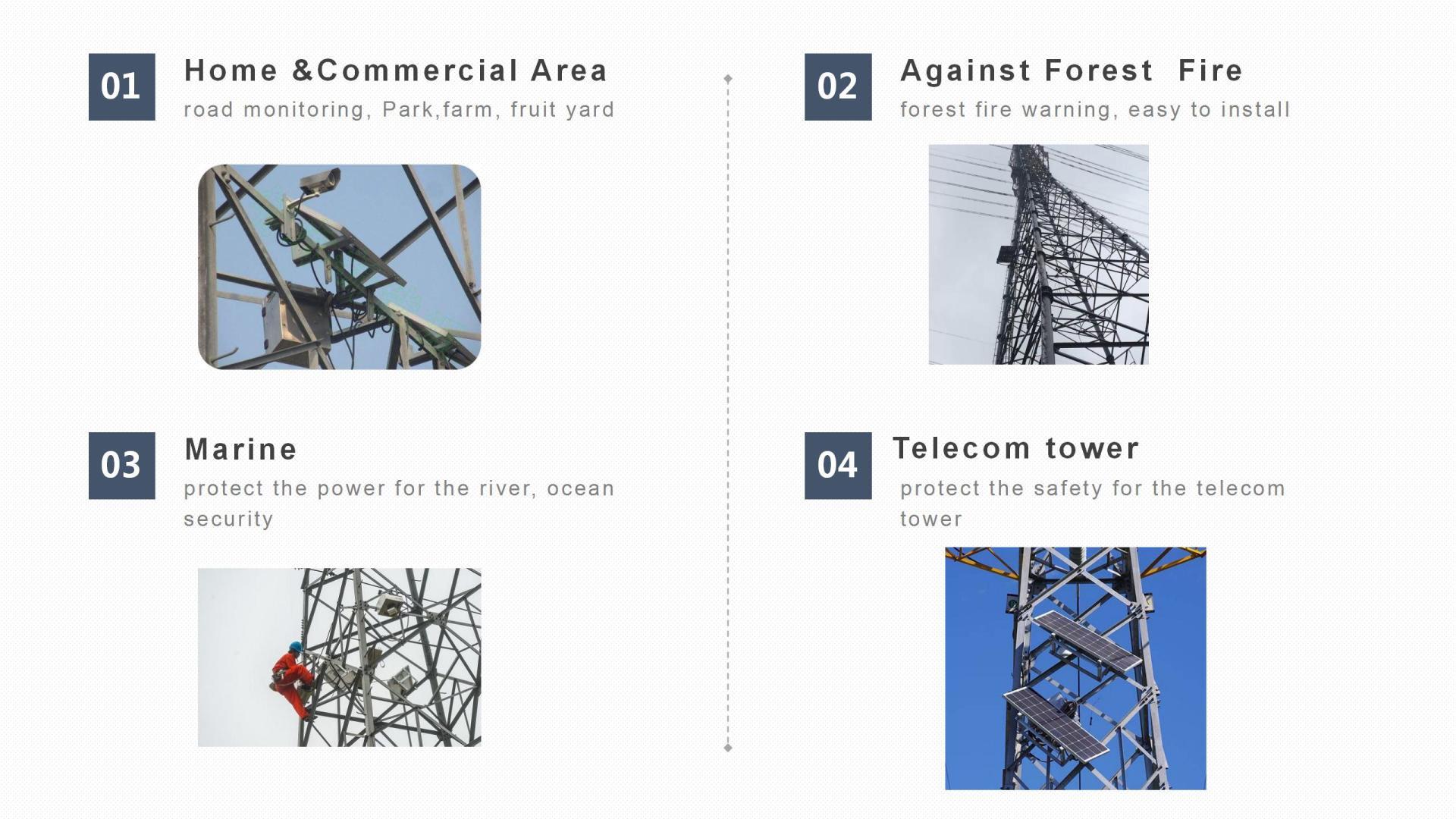

Applications
Our solar panel kits products have been sold worldwidely, they have been installed well in the market.
- 产品描述
- Features
- Technical data
- Packing list
- Applications
-
- Commodity name: TY-TF200100(H)Large Capacity Solar Powered System Wireless Outdoor Security Camera
- Commodity ID: TY-TF200100(H)
200W Monocrystalline Solar Panel Kit with Built-in Rechargeable Lithium Battery 18V 100Ah(1280WH), Waterproof IP67 for Off-Grid System.
200W Monocrystalline Solar Powered System Kit with Built-in Rechargeable Lithium Battery 12V 100Ah(1280WH), Waterproof IP67 for Off-Grid System.
● Long Cycle Life Monocrystalline Solar Panel
This 200 watts Monocrystalline Solar Panel provides higher energy conversion efficiency, and the excellent surface texturing technology guarantees good weak light performance. The harsh environment adaptability helps to extend the service life.
● High Capacity Built-in Lithium Battery
12V 100Ah Rechargeable Lithium Battery ensure reliable performance and continuous power output. Rated capacity reached 1280Wh.
● Built-in Charge MPPT Controller Provides Comprehensive Protection
Support battery high-low temperature protection, charge-discharge protection and low-battery sleep protection, which provide guarantee for the stability of power supply.
● RS485 supported
Our system support for RS485, It needs to set before leaving factory
● Easy Installation and Wide Application
The completely equipped accessory kit is suitable for a variety of installation scenes. Designed for areas where other power supplies cannot reach, such as camping, RVs, trailers, hunting, warehouse, farms, ranch and other remote power use.
● 2-Years Warranty & Lifetime Technical Support
2-years warranty and lifetime technical support.
Key words:- solar
-
TY-TF200100(H)Large Capacity Solar Powered System Wireless Outdoor Security Camera
Using Environment
-
General data
Solar Power Supply
Monitoring battery
Load voltage
Maximum load power
Load conversion efficiency
Maximum charging current
Sun input voltage
100AH
10~ 14.6V
80 W
90%~97%
10 A
18 V
Technical drawing
Solar Panel / Battery summary
TY-TF200100(H)
Size Battery
345×120×140mm
Module
200W
Battery
Lithium Ion-1280WH
Load Voltage
10~14.6V
Max Charge
8A
Solar Input Voltage
18V
Max Load
40W
Solar Panel
Solar Cell
166Mono
Optimum Power(V)
18V
Optimum operating Current
11.1A
Short Circuit Voltage
3.66
Open Circuit Voltage
21.24V
Size Module
1560*670*30mm
Front Glass Thickness
3.2mm
Tolerance Watts
±3%
Surfacer Max Load Capacity
60m/s(5kg/sq.m)
Allowable Hail Load
23m/s,7.53g
Temperature range
-20℃ to +85℃
Weight Per Piece(KG)
40KG with Battery (no Pole or accessories)
Cell Efficiency
21.6%
Warranty
90% for 10 years,80% for 25 years*
Water proof
IP67
Battery
Array Mode
4S1P
Nominal Capacity
100000mAh
Minimum Capacity
>949000mAh
Nominal Voltage
12.8V
Opertating Temp
Charging:0℃ 〜 65℃(32°F to 140°F)
Discharging:-30℃ to 65℃ (-22°F to 140°F)Cycle Life
＜2000*
(For detailed data sheet, please contact with us )
-
Item
Quantity
Solar kit (without camera)
1 Set
90 degree fixed iron plate
4 Pieces
90 degree support frame
2 Pieces
M8*16mm socket head cap screws
8 Pieces
M8*50mm hexagonal screws and nuts, spring pads, flat pads
6 Sets
Hexagon socket screwdriver (M8)
1 Piece
Certificate of Conformity
1 Piece
Compass
1 Piece
Instruction manual
1 Piece
4-core DC+485 0.75 square 1.5 meters (4-core small head)
1 Piece
-
Our solar panel kits products have been sold worldwidely, they have been installed well in the market.
