TY-KF10050(H)100W 50Ah Expandable Off Gird Solar 4G Camera System
100W Monocrystalline Solar Panel Kit with Built-in Rechargeable Lithium Battery 12v/24V 50Ah(640WH), Waterproof IP67 for Off-Grid System.
● Long Cycle Life Monocrystalline Solar Panel
This 100 watts Monocrystalline Solar Panel provides higher energy conversion efficiency, and the excellent surface texturing technology guarantees good weak light performance. The harsh environment adaptability helps to extend the service life.
● High Capacity Built-in Lithium Battery
12v/24V 50Ah Rechargeable Lithium Battery ensure reliable performance and continuous power output. Rated capacity reached 640Wh.
● Built-in Charge MPPT Controller Provides Comprehensive Protection
Support battery high-low temperature protection, charge-discharge protection and low-battery sleep protection, which provide guarantee for the stability of power supply.
● RS485 supported
Our system support for RS485, It needs to set before leaving factory
● Easy Installation and Wide Application
The completely equipped accessory kit is suitable for a variety of installation scenes. Designed for areas where other power supplies cannot reach, such as camping, RVs, trailers, hunting, warehouse, farms, ranch and other remote power use.
● 2-Years Warranty & Lifetime Technical Support
2-years warranty and lifetime technical support.
Series：
Environmental protection
Keyword: TY-KF10050(H)100W 50Ah Expandable Off Gird Solar 4G Camera System
Features
TY-KF10050(H)100W 50Ah Expandable Off Gird Solar 4G Camera System
Using Environment
Technical data
General data
|
Solar Power Supply |
|||||
|
Monitoring battery |
Load voltage |
Maximum load power |
Load conversion efficiency |
Maximum charging current |
Sun input voltage |
|
50AH |
10~ 14.6V |
80 W |
90%~97% |
10 A |
18 V |

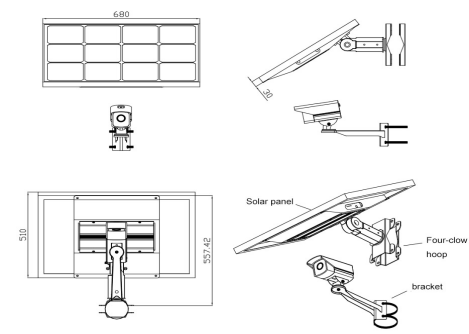

Technical drawing
|
Solar Panel / Battery summary |
TY-KF10050(H) |
|
Size Battery |
330×140×90mm |
|
Module |
100W |
|
Battery |
Lithium Ion-640WH |
|
Load Voltage |
10~14.6V |
|
Max Charge |
10A |
|
Solar Input Voltage |
18V |
|
Max Load |
40W |
|
Solar Panel |
|
|
Solar Cell |
156Mono |
|
Optimum Power(V) |
18V |
|
Optimum operating Current |
5.55A |
|
Short Circuit Voltage |
6.11 |
|
Open Circuit Voltage |
21.24V |
|
Size Module |
870*670*30mm |
|
Front Glass Thickness |
3.2mm |
|
Tolerance Watts |
±3% |
|
Surfacer Max Load Capacity |
60m/s(5kg/sq.m) |
|
Allowable Hail Load |
23m/s,7.53g |
|
Temperature range |
-20℃ to +85℃ |
|
Weight Per Piece(KG) |
15KG with Battery (no Pole or accessories) |
|
Cell Efficiency |
21.6% |
|
Warranty |
90% for 10 years,80% for 25 years* |
|
Water proof |
IP67 |
|
Battery |
|
|
Array Mode |
4S1P |
|
Nominal Capacity |
50000mAh |
|
Minimum Capacity |
>49000mAh |
|
Nominal Voltage |
12.8V |
|
Opertating Temp |
Charging:0℃ 〜 65℃(32°F to 140°F) |
|
Cycle Life |
＜2000* |
(For detailed data sheet, please contact with us )
Packing list
|
Name |
QTY. |
|
Solar kit (without camera) |
1 Set |
|
Compass |
1 Pcs |
|
M8*80 Screw nut |
4 Set |
|
Hoop |
2 PCS |
|
Hexagon screwdriver（M14、M8） |
1 PCS of each |
|
Output power cord (1.5 meters) (Box version) |
1 PCS |
|
Manual |
1 PCS |
|
Certificate of conformity |
1 PCS |
Applications
Our Solar 4G Camera System have been sold worldwidely, they have been installed well in the market.
- 产品描述
- Features
- Technical data
- Packing list
- Applications
-
- Commodity name: TY-KF10050(H)100W 50Ah Expandable Off Gird Solar 4G Camera System
- Commodity ID: TY-KF10050(H)
100W Monocrystalline Solar Panel Kit with Built-in Rechargeable Lithium Battery 24V 50Ah(640WH), Waterproof IP67 for Off-Grid System.
100W Monocrystalline Solar Panel Kit with Built-in Rechargeable Lithium Battery 12v/24V 50Ah(640WH), Waterproof IP67 for Off-Grid System.
● Long Cycle Life Monocrystalline Solar Panel
This 100 watts Monocrystalline Solar Panel provides higher energy conversion efficiency, and the excellent surface texturing technology guarantees good weak light performance. The harsh environment adaptability helps to extend the service life.
● High Capacity Built-in Lithium Battery
12v/24V 50Ah Rechargeable Lithium Battery ensure reliable performance and continuous power output. Rated capacity reached 640Wh.
● Built-in Charge MPPT Controller Provides Comprehensive Protection
Support battery high-low temperature protection, charge-discharge protection and low-battery sleep protection, which provide guarantee for the stability of power supply.
● RS485 supported
Our system support for RS485, It needs to set before leaving factory
● Easy Installation and Wide Application
The completely equipped accessory kit is suitable for a variety of installation scenes. Designed for areas where other power supplies cannot reach, such as camping, RVs, trailers, hunting, warehouse, farms, ranch and other remote power use.
● 2-Years Warranty & Lifetime Technical Support
2-years warranty and lifetime technical support.
Key words:- solar
-
TY-KF10050(H)100W 50Ah Expandable Off Gird Solar 4G Camera System
Using Environment
-
General data
Solar Power Supply
Monitoring battery
Load voltage
Maximum load power
Load conversion efficiency
Maximum charging current
Sun input voltage
50AH
10~ 14.6V
80 W
90%~97%
10 A
18 V
Technical drawing
Solar Panel / Battery summary
TY-KF10050(H)
Size Battery
330×140×90mm
Module
100W
Battery
Lithium Ion-640WH
Load Voltage
10~14.6V
Max Charge
10A
Solar Input Voltage
18V
Max Load
40W
Solar Panel
Solar Cell
156Mono
Optimum Power(V)
18V
Optimum operating Current
5.55A
Short Circuit Voltage
6.11
Open Circuit Voltage
21.24V
Size Module
870*670*30mm
Front Glass Thickness
3.2mm
Tolerance Watts
±3%
Surfacer Max Load Capacity
60m/s(5kg/sq.m)
Allowable Hail Load
23m/s,7.53g
Temperature range
-20℃ to +85℃
Weight Per Piece(KG)
15KG with Battery (no Pole or accessories)
Cell Efficiency
21.6%
Warranty
90% for 10 years,80% for 25 years*
Water proof
IP67
Battery
Array Mode
4S1P
Nominal Capacity
50000mAh
Minimum Capacity
>49000mAh
Nominal Voltage
12.8V
Opertating Temp
Charging:0℃ 〜 65℃(32°F to 140°F)
Discharging:-20℃ to 60℃ (-4°F to 140°F)Cycle Life
＜2000*
(For detailed data sheet, please contact with us )
-
Name
QTY.
Solar kit (without camera)
1 Set
Compass
1 Pcs
M8*80 Screw nut
4 Set
Hoop
2 PCS
Hexagon screwdriver（M14、M8）
1 PCS of each
Output power cord (1.5 meters) (Box version)
1 PCS
Manual
1 PCS
Certificate of conformity
1 PCS
-
Our Solar 4G Camera System have been sold worldwidely, they have been installed well in the market.
