(TY-CN5K-H6) Home Solar System 5KW 5000Watt 5000W Hybrid Solar System 3KW 4KW 5KW 8KW 10KW 12KW Solar Energy System
Lithium Battery dismension:
W 480mm* D 550mm* H 1220mm
Normal Voltage (V)
51.2V
Nominal Capacity
600Ah
Discharge and Voltage (V)
48v
Max discharge Current (A)
Lithium Battery Max discharge Current 100A
Nominal Capacity (KWH)
Home use Lithium Battery Capacity 5kwh 10Kwh 15KWh 20Kwh 25kwh 30kwh
Weight (Kgs)
LiFePO4 LIthium Battery Weight 360kg
Cycle Life (DOD 80%)
Li-Ion Battery Cycle Life >6000
Series：
Environmental protection
Keyword: (TY-CN5K-H6) Home Solar System 5KW 5000Watt 5000W Hybrid Solar System 3KW 4KW 5KW 8KW 10KW 12KW Solar Energy System
Features
(TY-CN5K-H6) Home Solar System 5KW 5000Watt 5000W Hybrid Solar System 3KW 4KW 5KW 8KW 10KW 12KW Solar Energy System
Solar Energy System is a green home solar energy storage batteries that offers the ability to store your own solar power during the day, then store it onsite, and to discharge it at night or when the grid goes down to feed up your home energy needs. The solar battery system ensures that you are using 100% of your renewable energy onsite, substantially increasing your independence from your local electric provider and reducing your electric bills.
ESS Battery can be used as a backup power supply in the event of a sudden power shortage. The discharge mode will be instantly switched on to offer support to critical loads and safeguard the normal operation of critical loads. Establish good interactions with the power grid partners by getting involved in demand response programs. Contribute to reduce peak load and get incentives from the grid.

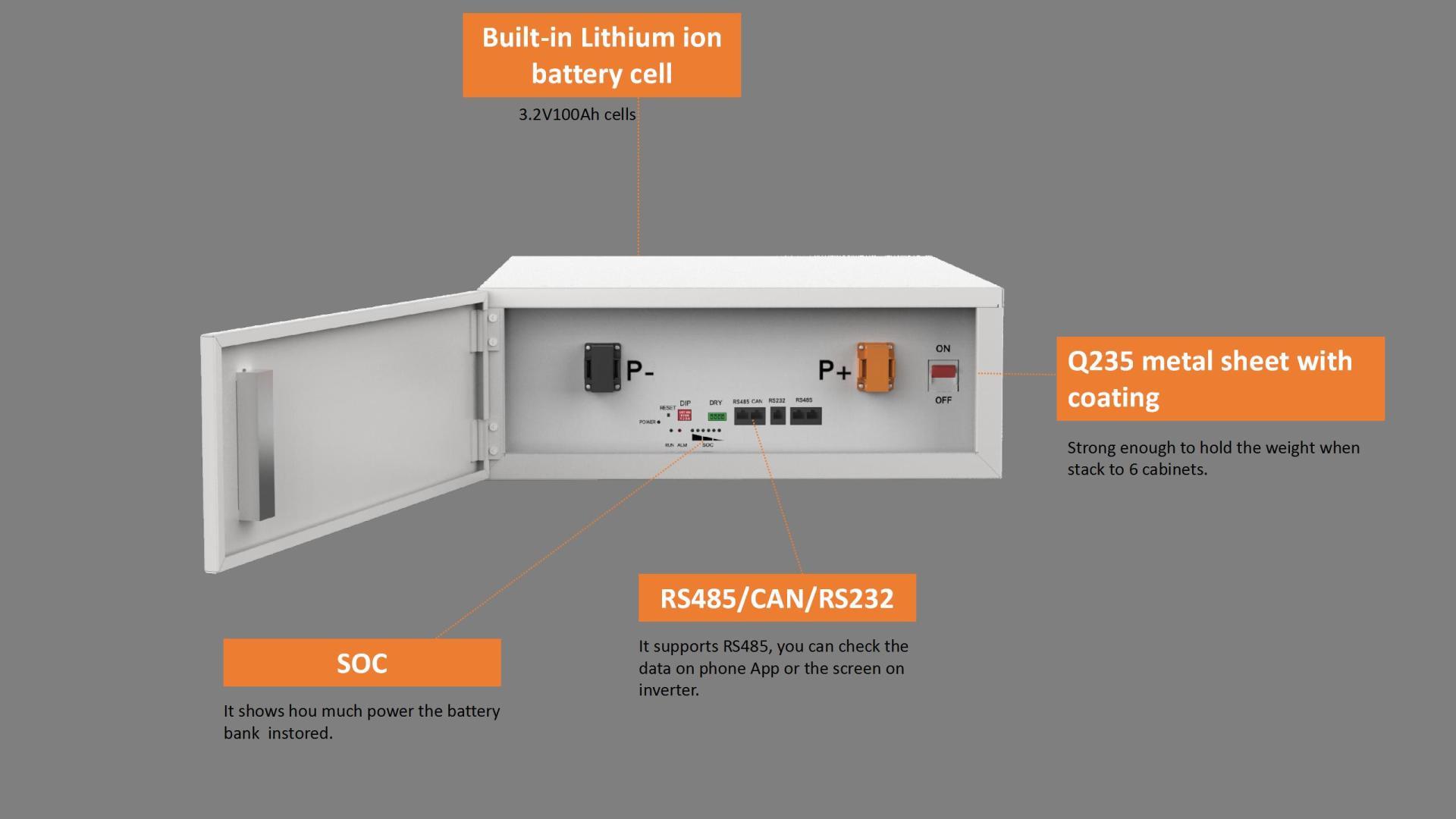

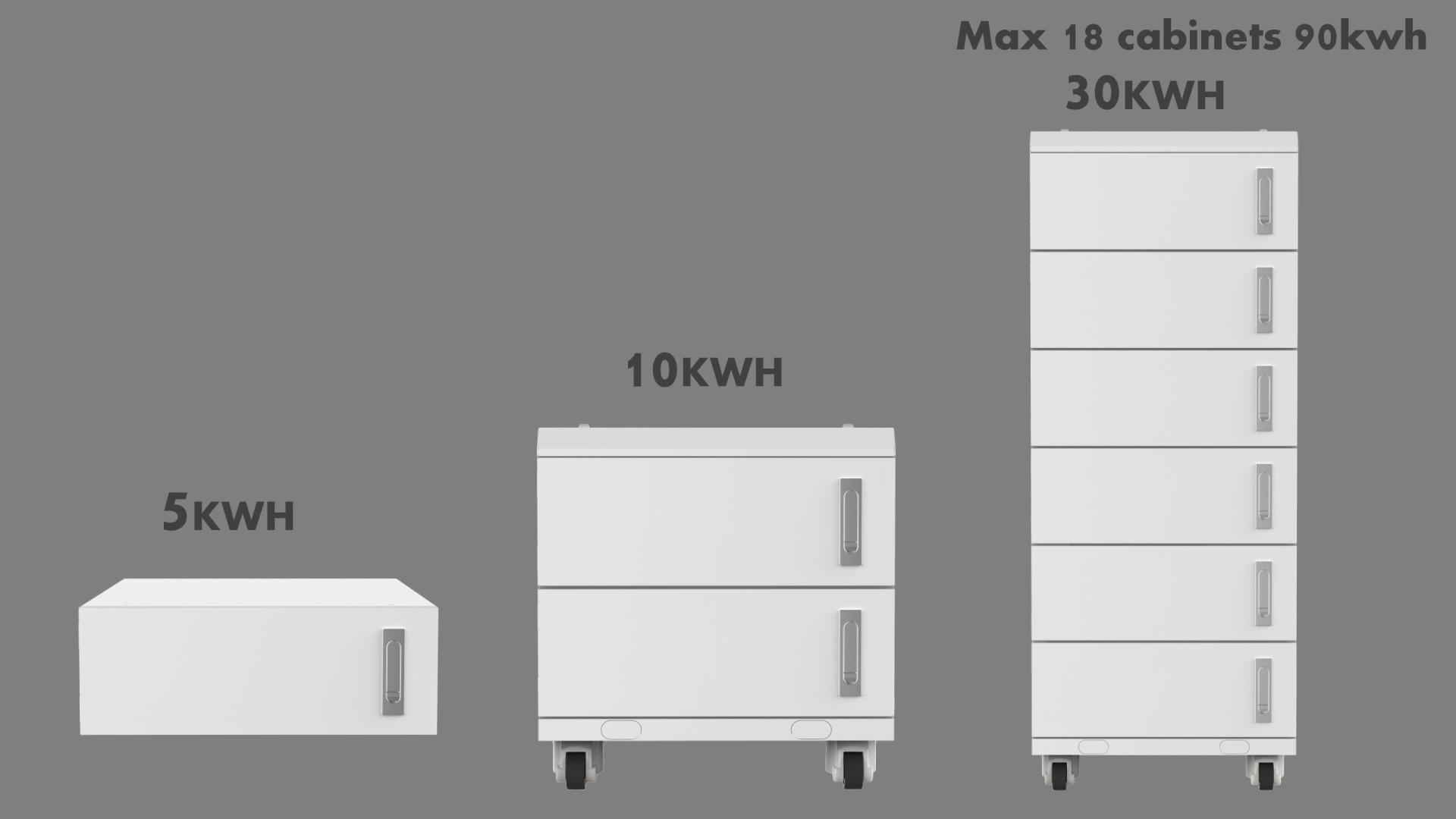

High-efficient Stacked Energy Storage System
Each cabinet is 5kwh, it can be stacked flexibly.The max parrallel qty can reach 18 cabinets, reach 90kwh.
Technical data
Parameters for Stacked Home Solar Energy Storage Batteries
|
Model Number
|
TY-CN5K-H1
|
TY-CN5K-H2
|
TY-CN5K-H3
|
TY-CN5K-H4
|
TY-CN5K-H5
|
TY-CN5K-H6
|
|
System Basic Parameters
|
||||||
|
Number of battery packs
|
1
|
2
|
3
|
4
|
5
|
6
|
|
Nominal system voltage
|
51.2
|
|||||
|
System nominal energy (100% DOD)
|
5kwh
|
10kwh
|
15kwh
|
20kwh
|
25kwh
|
30kwh
|
|
System available energy (90% DOD)
|
4.5kwh
|
9kwh
|
13.5kwh
|
18kwh
|
22.5kwh
|
27kwh
|
|
Dimension (mm)
|
480*550*180
|
480*550*510
|
480*550*680
|
480*550*860
|
480*550*1040
|
480*550*1220
|
|
Weight (KGS)
|
52
|
110
|
162
|
214
|
266
|
318
|
|
Protection level
|
IP65
|
|||||
|
Cooling method
|
Natural cooling
|
|||||
|
Battery module parameters
|
||||||
|
Nominal Voltage
|
51.2Vdc
|
|||||
|
Nominal Capacity |
100AH
|
|||||
|
DOD
|
<90%
|
|||||
|
Nominal Charging Current
|
100A
|
|||||
|
Maximum continuous charging current
|
105A
|
|||||
|
Rated Discharge Current
|
100A
|
|||||
|
Maximum continuous discharge current
|
105A
|
|||||
|
Working temperature
|
Discharge：-20℃~60℃；Charge：0℃~60℃
|
|||||
|
Storage temperature
|
＜25℃ 12 months；
＜35℃ 6 months； ＜45℃ months |
|||||
|
Environment humidity
|
<95%RH（No condensation）
|
|||||
|
Altitude conditions
|
<2500m
|
|||||
|
Cycle life
|
6000 times @80%DOD/25℃/0.5C charge & discharge,60%EOL
|
|||||
Packing list
Applications
The deep cycle lithium ion Solar Energy Storage Battery can store the electricity generated by clean energy and transmit it to users through the grid, reducing carbon pollution and making full use of clean energy for backup power supply.
- 产品描述
- Features
- Technical data
- Applications
-
- Commodity name: (TY-CN5K-H6) Home Solar System 5KW 5000Watt 5000W Hybrid Solar System 3KW 4KW 5KW 8KW 10KW 12KW Solar Energy System
- Commodity ID: TY-CN5K-H6
Lithium Battery dismension:
W 480mm* D 550mm* H 1220mm
Normal Voltage (V)
51.2V
Nominal Capacity
600Ah
Discharge and Voltage (V)
48v
Max discharge Current (A)
Lithium Battery Max discharge Current 100A
Nominal Capacity (KWH)
Home use Lithium Battery Capacity 5kwh 10Kwh 15KWh 20Kwh 25kwh 30kwh
Weight (Kgs)
LiFePO4 LIthium Battery Weight 360kg
Cycle Life (DOD 80%)
Li-Ion Battery Cycle Life >6000
-
(TY-CN5K-H6) Home Solar System 5KW 5000Watt 5000W Hybrid Solar System 3KW 4KW 5KW 8KW 10KW 12KW Solar Energy System
Solar Energy System is a green home solar energy storage batteries that offers the ability to store your own solar power during the day, then store it onsite, and to discharge it at night or when the grid goes down to feed up your home energy needs. The solar battery system ensures that you are using 100% of your renewable energy onsite, substantially increasing your independence from your local electric provider and reducing your electric bills.
ESS Battery can be used as a backup power supply in the event of a sudden power shortage. The discharge mode will be instantly switched on to offer support to critical loads and safeguard the normal operation of critical loads. Establish good interactions with the power grid partners by getting involved in demand response programs. Contribute to reduce peak load and get incentives from the grid.
High-efficient Stacked Energy Storage System
Each cabinet is 5kwh, it can be stacked flexibly.The max parrallel qty can reach 18 cabinets, reach 90kwh.
-
Parameters for Stacked Home Solar Energy Storage Batteries
Model NumberTY-CN5K-H1TY-CN5K-H2TY-CN5K-H3TY-CN5K-H4TY-CN5K-H5TY-CN5K-H6System Basic ParametersNumber of battery packs123456Nominal system voltage51.2System nominal energy (100% DOD)5kwh10kwh15kwh20kwh25kwh30kwhSystem available energy (90% DOD)4.5kwh9kwh13.5kwh18kwh22.5kwh27kwhDimension (mm)480*550*180480*550*510480*550*680480*550*860480*550*1040480*550*1220Weight (KGS)52110162214266318Protection levelIP65Cooling methodNatural coolingBattery module parametersNominal Voltage51.2Vdc
Nominal Capacity100AHDOD<90%Nominal Charging Current100AMaximum continuous charging current105ARated Discharge Current100AMaximum continuous discharge current105AWorking temperatureDischarge：-20℃~60℃；Charge：0℃~60℃Storage temperature＜25℃ 12 months；
＜35℃ 6 months；
＜45℃ monthsEnvironment humidity<95%RH（No condensation）Altitude conditions<2500mCycle life6000 times @80%DOD/25℃/0.5C charge & discharge,60%EOL -
The deep cycle lithium ion Solar Energy Storage Battery can store the electricity generated by clean energy and transmit it to users through the grid, reducing carbon pollution and making full use of clean energy for backup power supply.
